Natural rubber (NR) sheet

Product Name: Natural Rubber SheetProduct Code: DNR098H38RProduct Grade: Premium Grade Premium Rubber Sheet Polymer: NRColor: Red Status: In Stock

Mechanical and physical properties Density (g / cm3): 0.98 Tensile strength (MPa): 24 Elongation at tear point (range%): 750% Hardness: 38 +/- 5 Shore A Tearing resistance (N / mm): 40 Compressive recovery (72 hour test at 70 ° C heat): 30% Rubber wear test (mm3): 80

Download Specfication

Download msds

Download RoHS Report

PROWIN Rubber Sheet: Natural Rubber Sheet (NR) (DNR098H38R) Natural Rubber Sheet (NR) is a natural rubber sheet that can withstand scratches, bumps, and friction, especially the excellent properties of Natural Rubber Sheet ( NR) makes it widely used in cutting, abrasion or wear. And able to withstand great impacts The chemical resistant ability makes it an ideal rubber for coating the tank. NR rubber has been specially designed by the use of wholesome grade natural rubber to give high strength rubber suitable for For applications that require high resistance to abrasion, impact, abrasion and cutting and tearing, NR rubber sheets are suitable for applications such as For mining and quarrying etc. PROWIN Rubber Sheet Natural Rubber Sheet (NR) (DNR098H38R) Premium Grade is a premium grade rubber of rubber sheet that uses genuine pure rubber and high quality raw material ingredients for manufacture Makes the use of this premium grade rubber very high quality

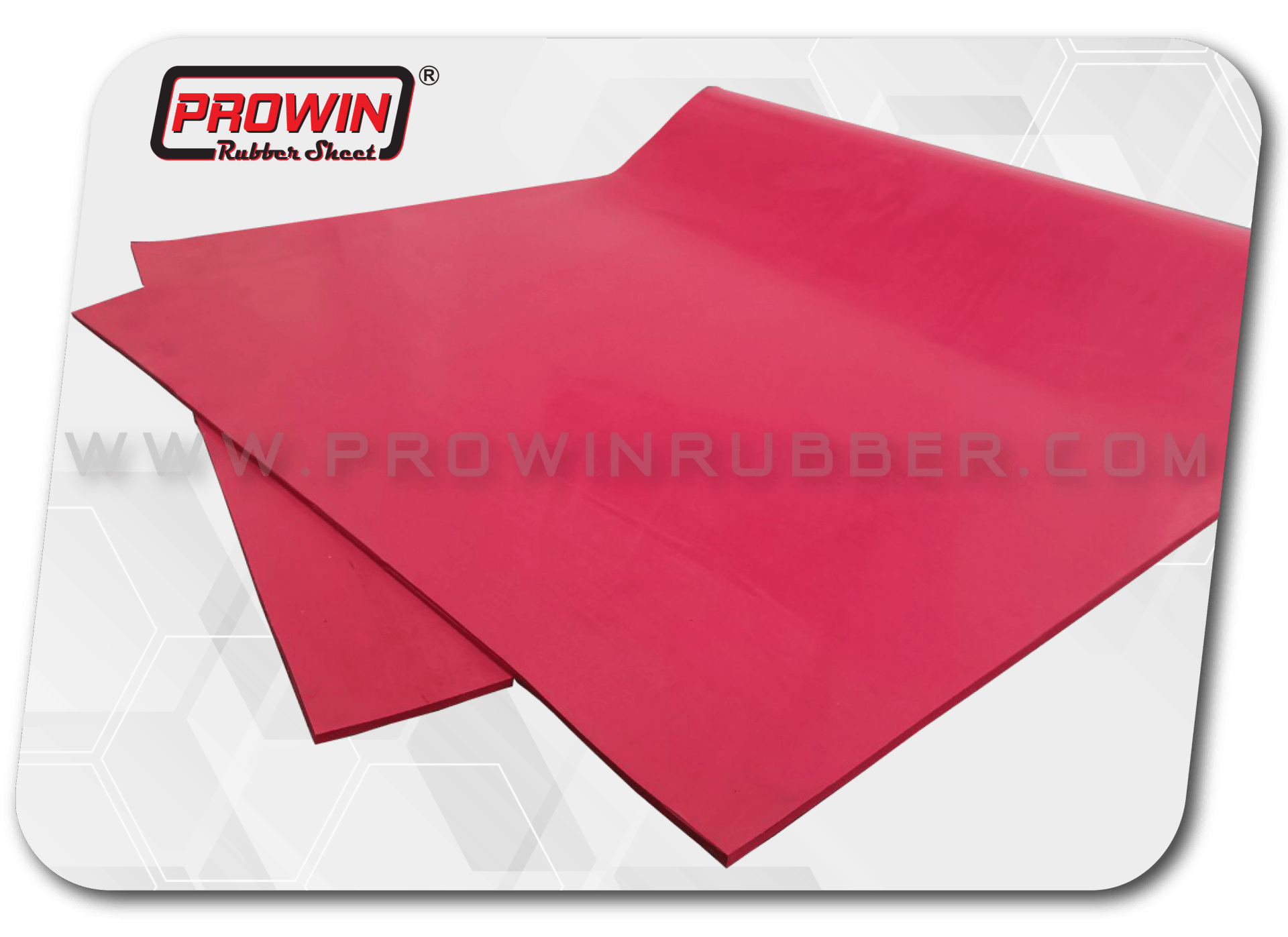

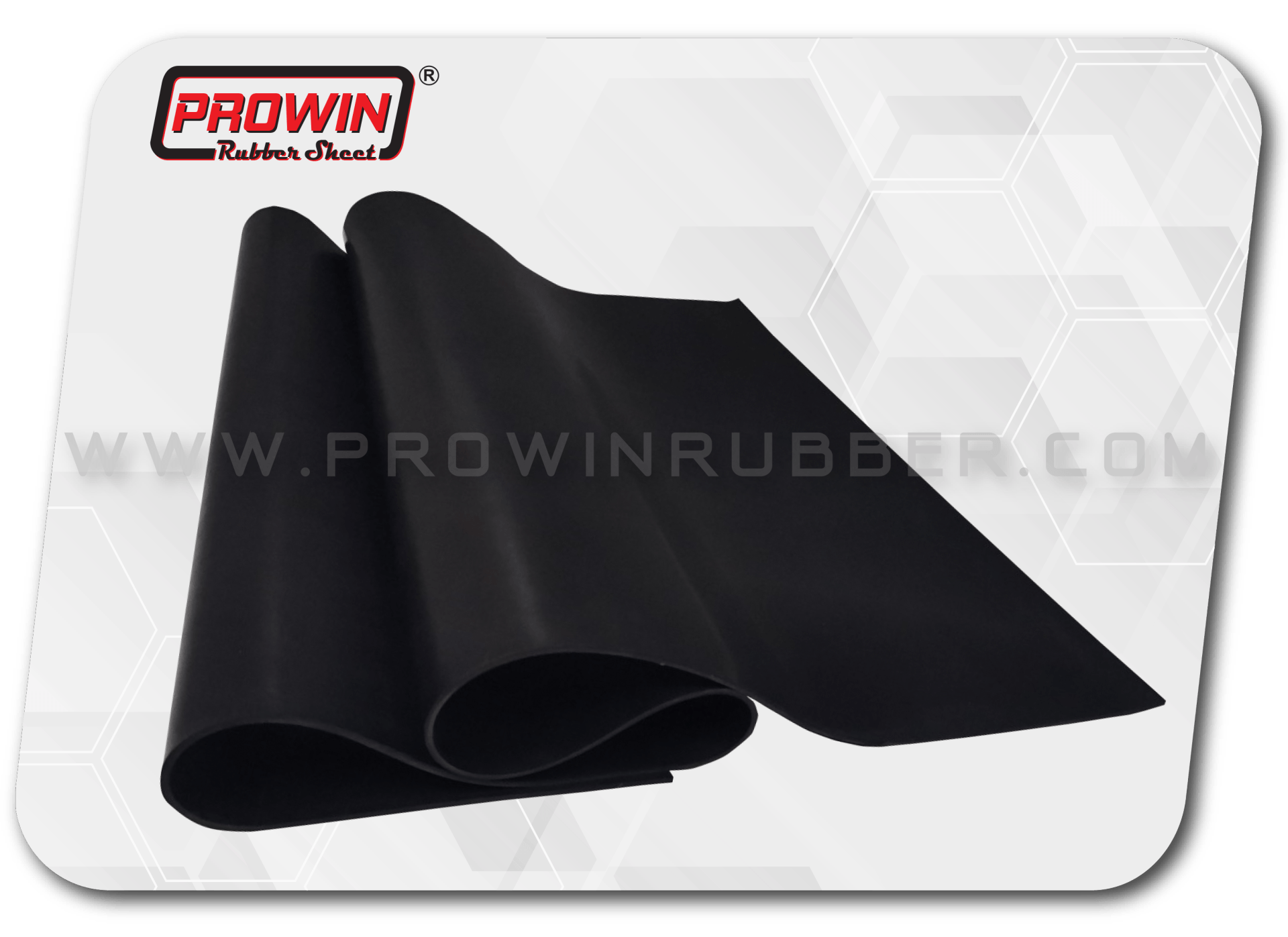

Rubber sheet sample image

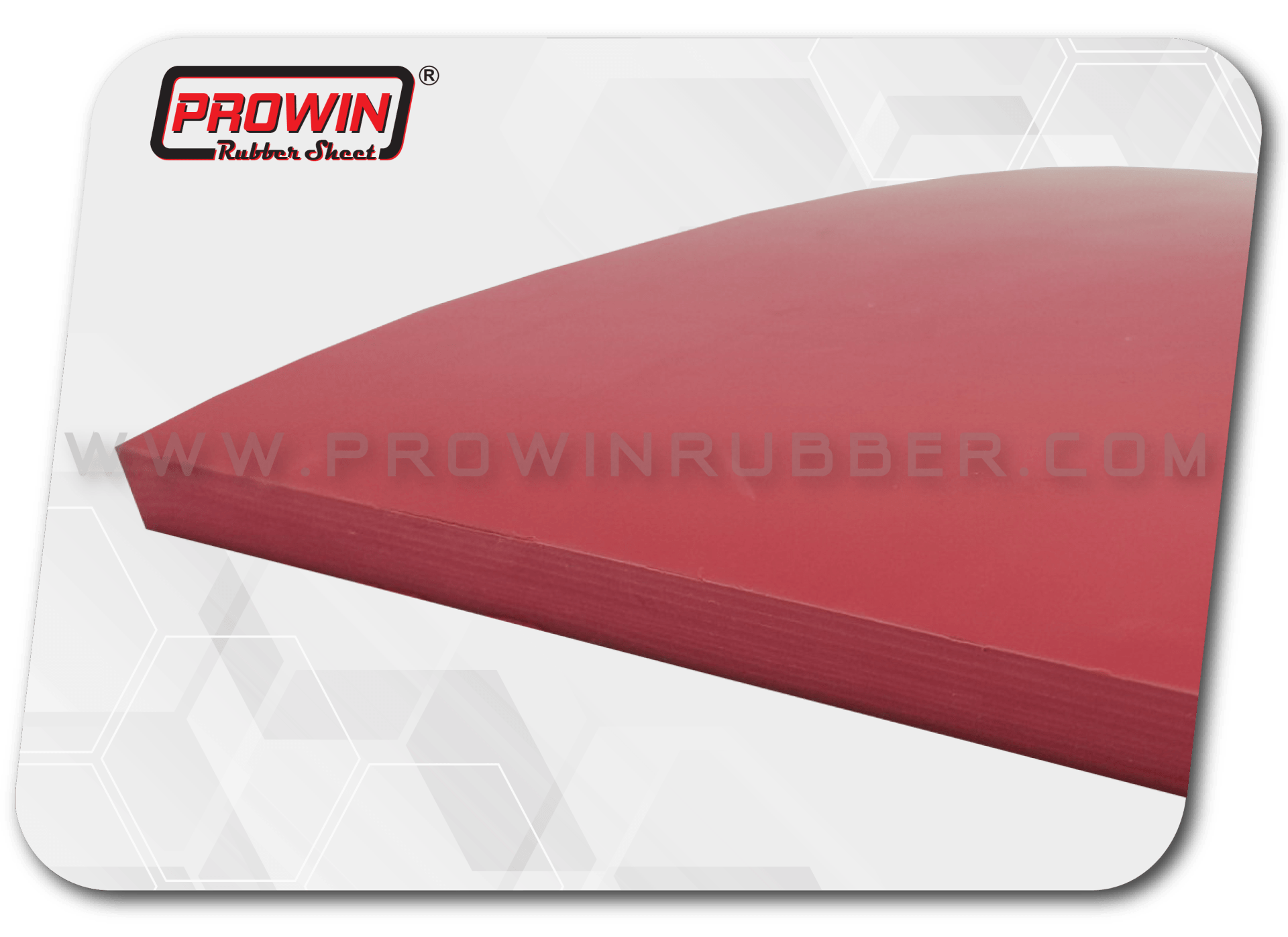

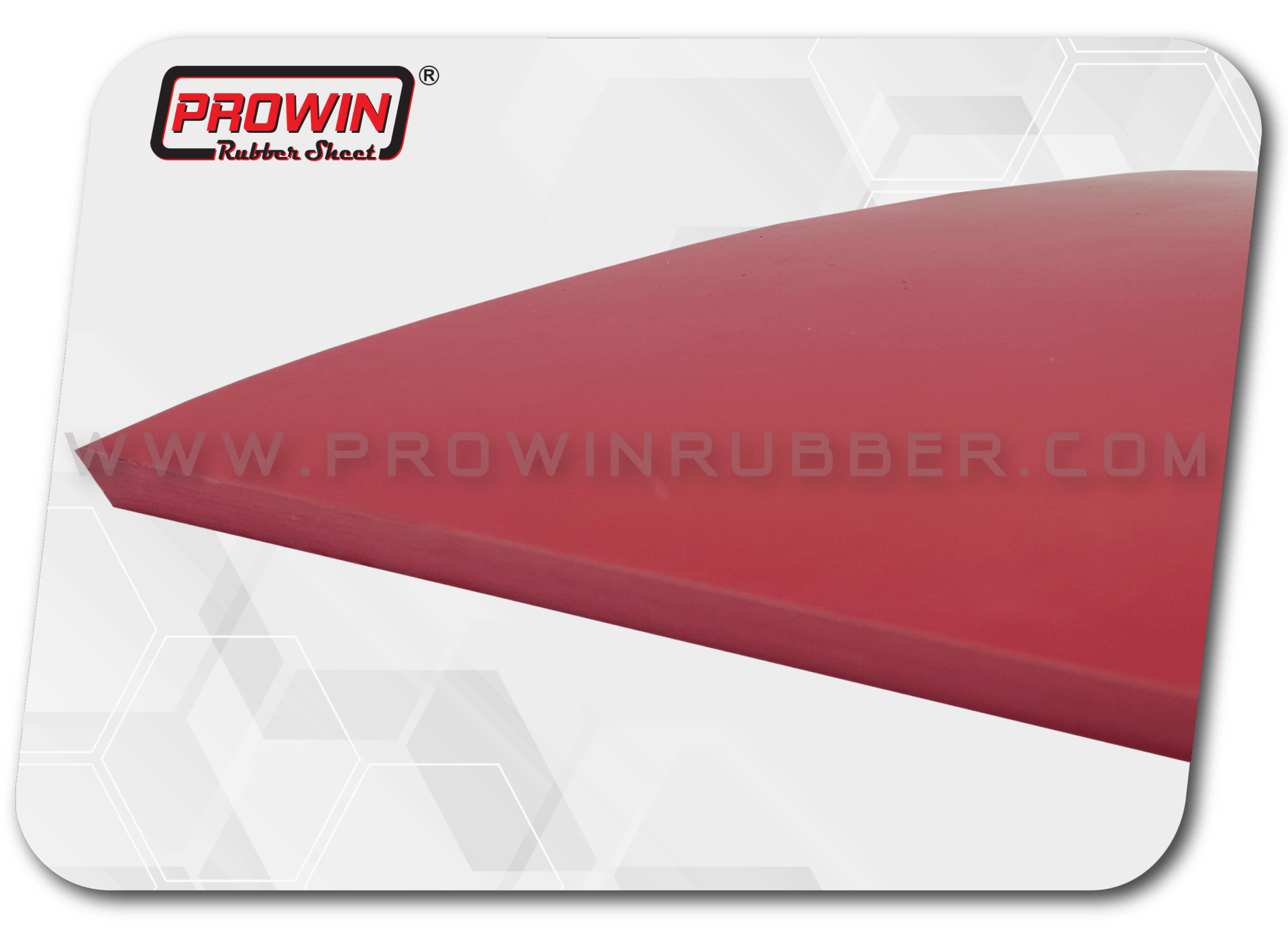

Preview of the rim

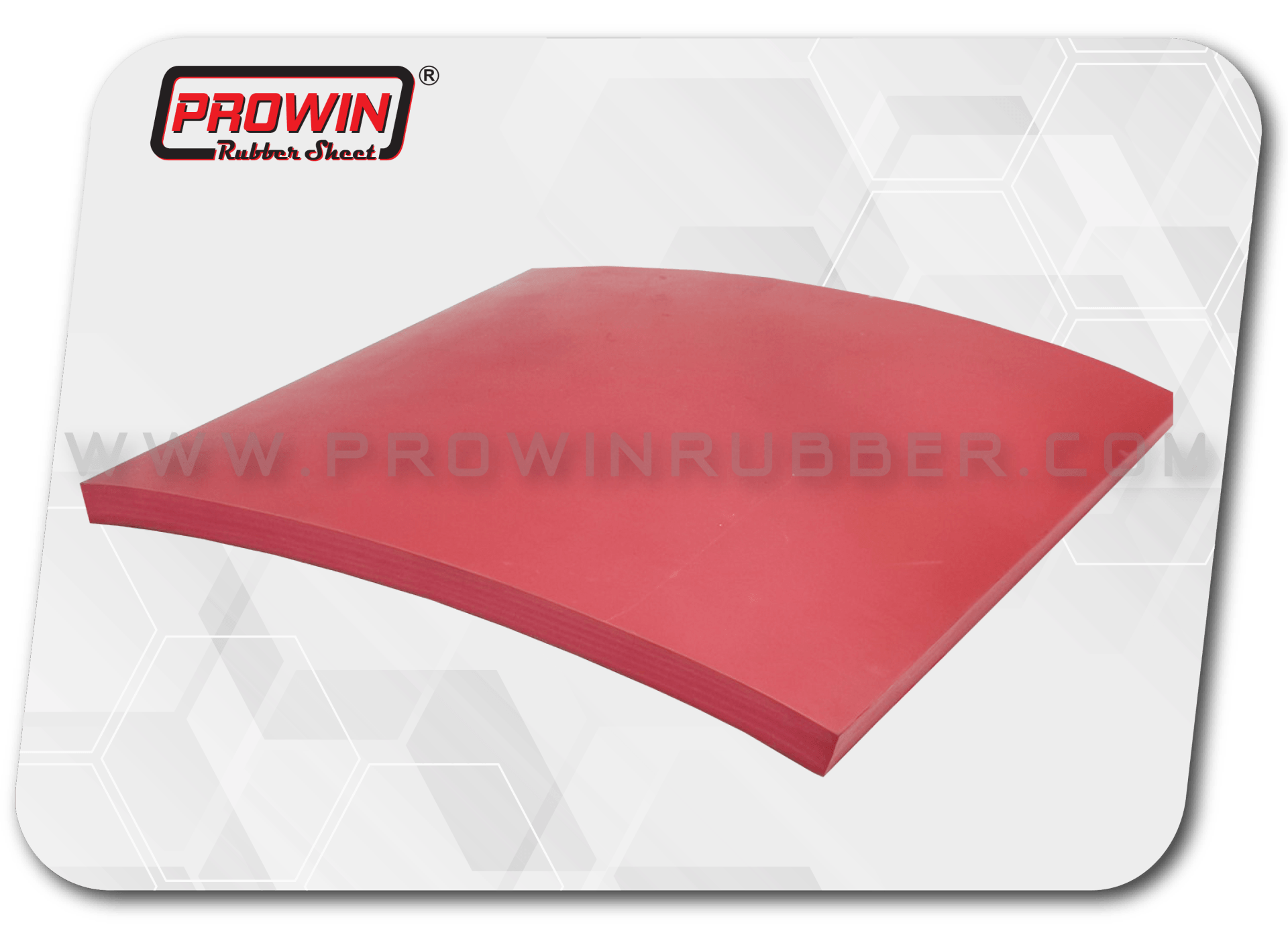

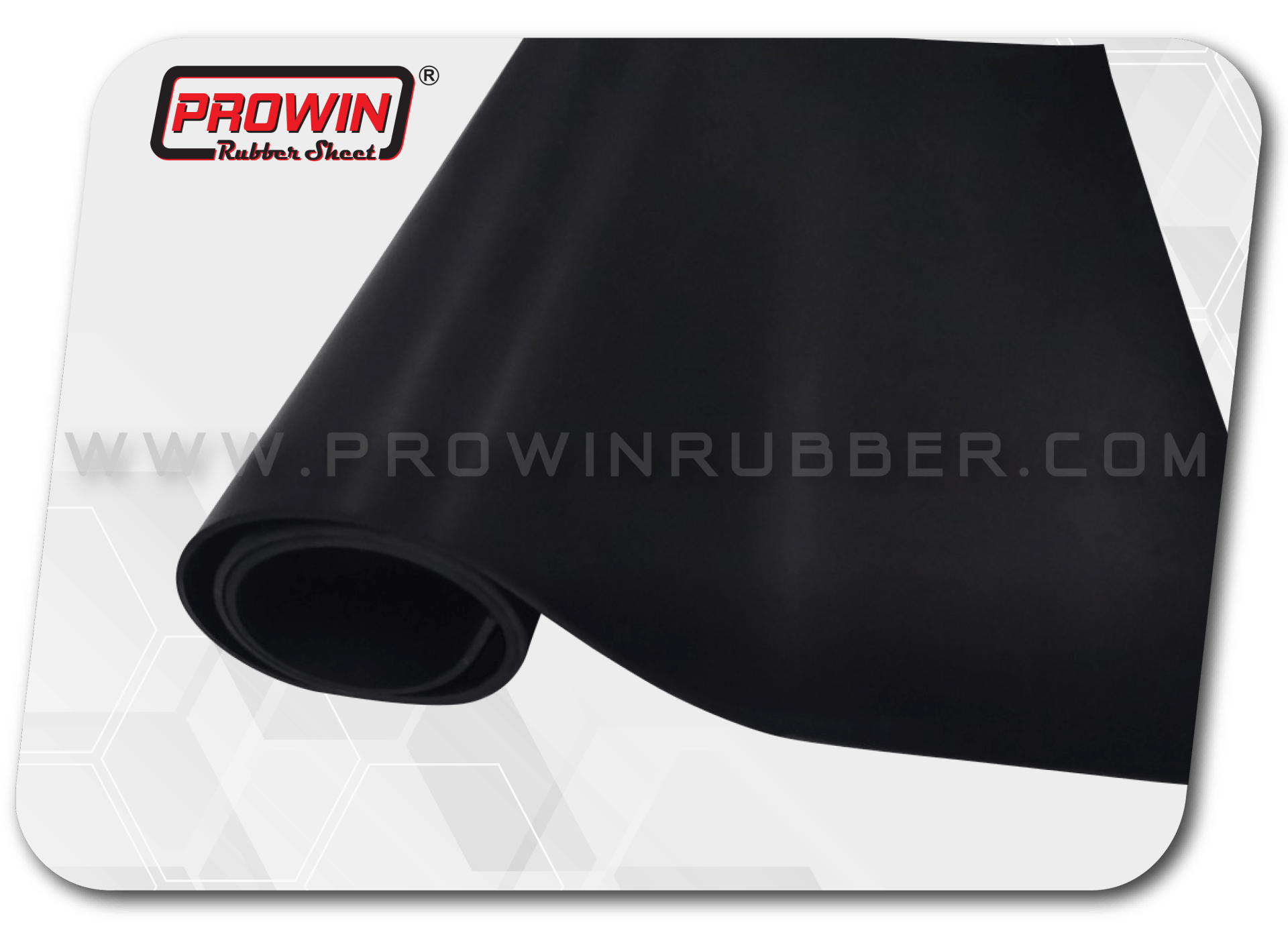

Sample image of rubber surface contact

Good resistance to scratches, bumps, friction, excellent impact resistance, cutting and tearing, excellent tensile strength, high flexibility

Applications Tank applications Slurry management Enamel pipe Coating pump Chute valve coating, production of coated belts Hydrocyclones coated with a skirt board covered with Pulley

Features Operating Temperature Range Operating Low Temperature Range: -1 ° C to -40 ° C Continuous Low Temperature Operating (Fixed): -40 ° C Operating at High Temperature Range: 60 ° C to 80 ° C. Continuous high-temperature (constant) operation: 80 ° C

Performance Flammability resistance: 0 Dry and wet wastes: 6 Gas permeability: 3 Ozone resistance: 1 Oxidation resistance: 4 Weather resistance: 1 Water resistance: 6Score rate: 6 = Excellent, 5 = Good to Excellent, 4 = Good, 3 = Fair to Good, 2 = Fair, 1 = Poor to Fair, 0 = Poor
