PROWIN Rubber Sheet
- RUBBER SHEET YOU CAN TRUST -
NBR/SBR Rubber Sheet
Product Name : NBR Rubber Sheet
Product Code : SGSBR148H65B
Product Grade : Commercial Grade
Polymer : NBR/SBR
Color : Black
Size : 1 mm x to 25 mm
Width : 1 meter, 1.2 meter
Status : In Stock
Mechanical and physical properties
Density (g / cm3) : 1.48
Tensile strength (MPa) : 3
Elongation at break (%) : 150
Hardness: 65 +/- 5 Shore A
PROWIN commercial grade NBR rubber sheet : NBR Rubber Sheet (NBR) / SBR (SG148H65B)
Commercial grade NBR rubber sheet is general purpose rubber sheet suitable for general application and mild mineral oil environment. It has been commonly used for mild mineral oil resistance, none crucial gasket, machinery cushion pad, or anti skid sheet for factory floor.
Hardness - 65 +/- 5 Shore A
Tensile strength - 3.0 Mpa
Surface - Smooth
Oil resistance : mild mineral oil
Materials: Main components such as NBR, styrene butadiene rubber(SBR) and carbon black. Sub-components such as zinc oxide, sulfur, catalyst (<1%) and antioxidants or stabilizers (<1%).

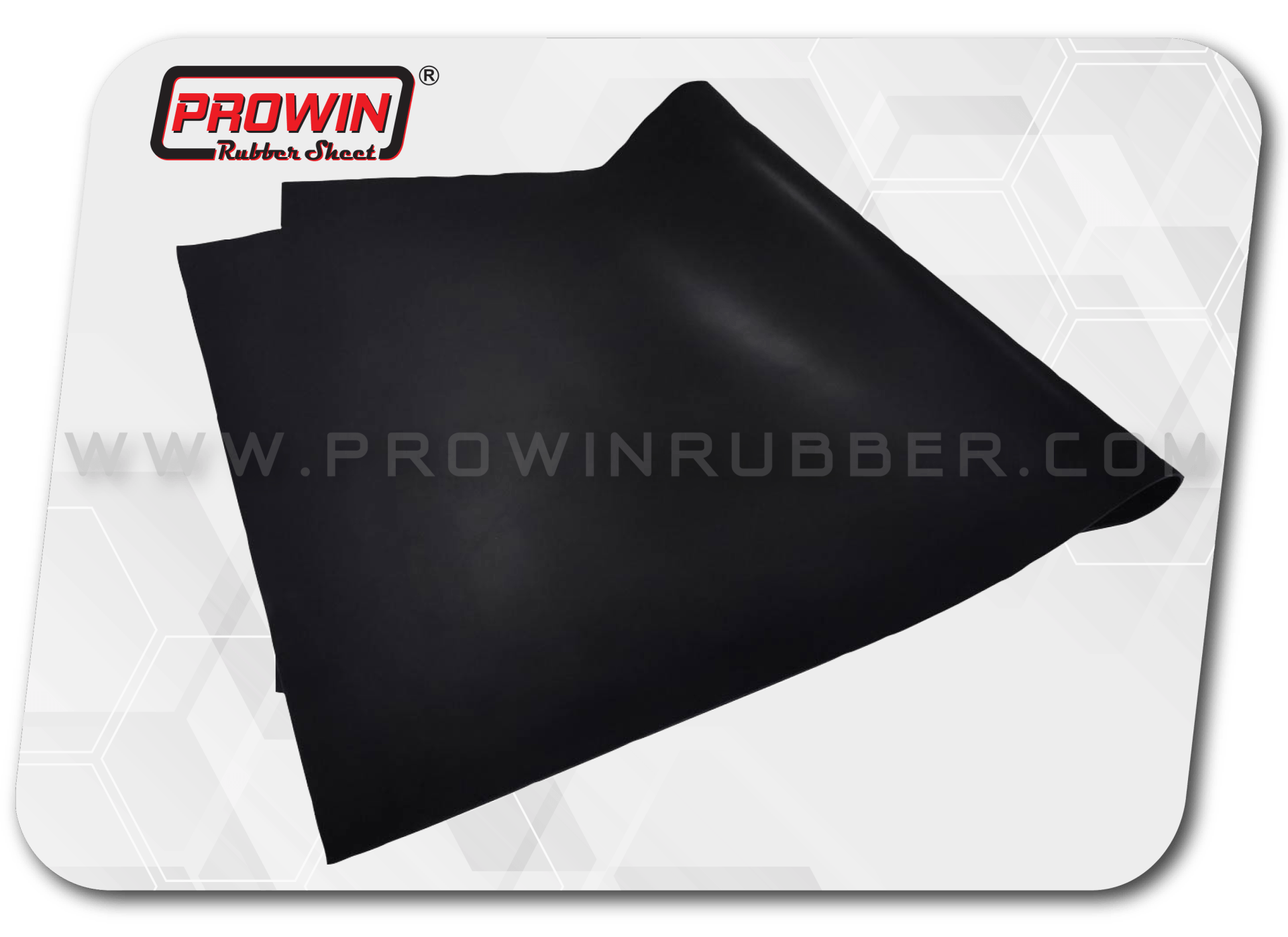

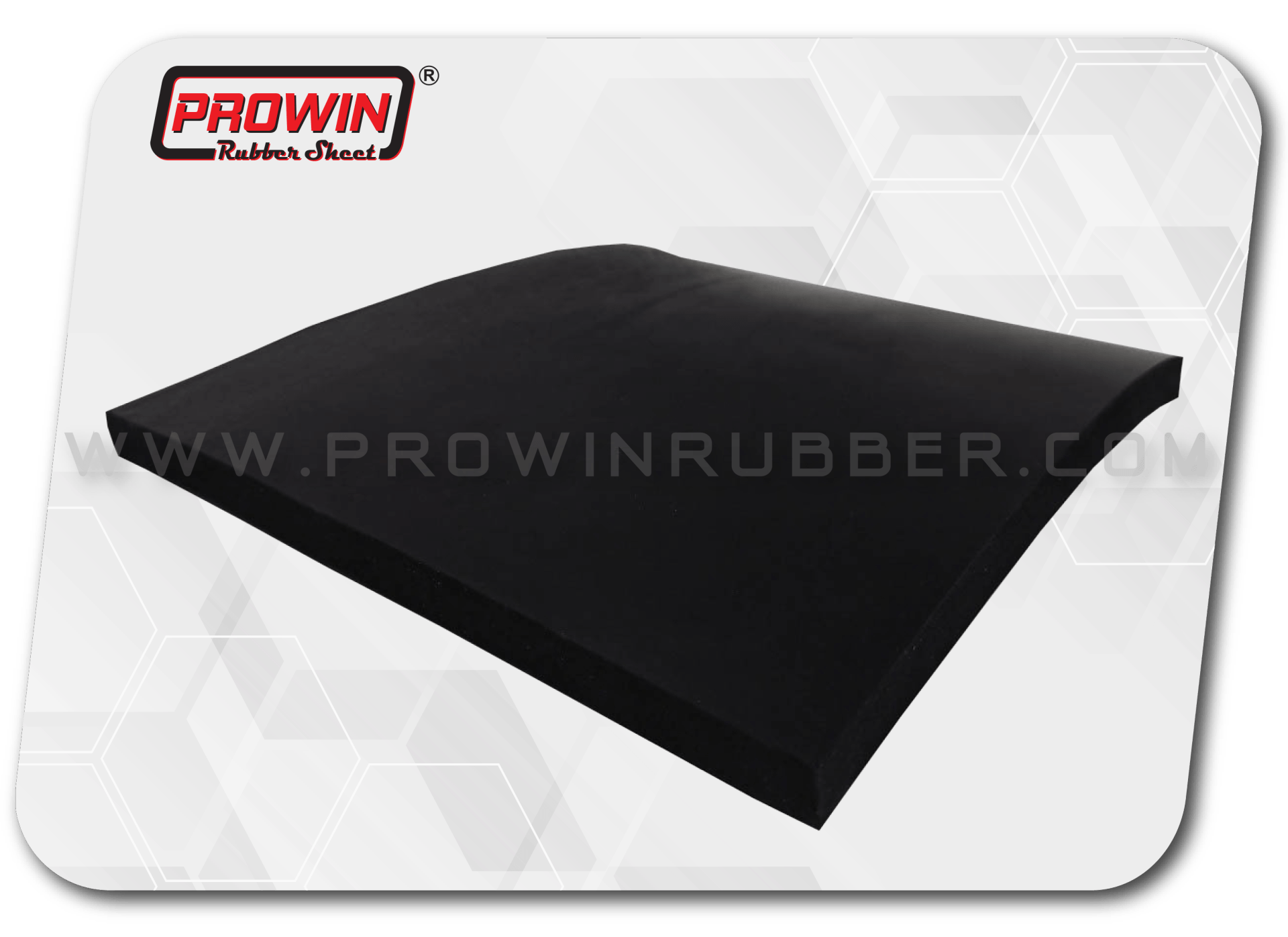

Rubber sheet sample image

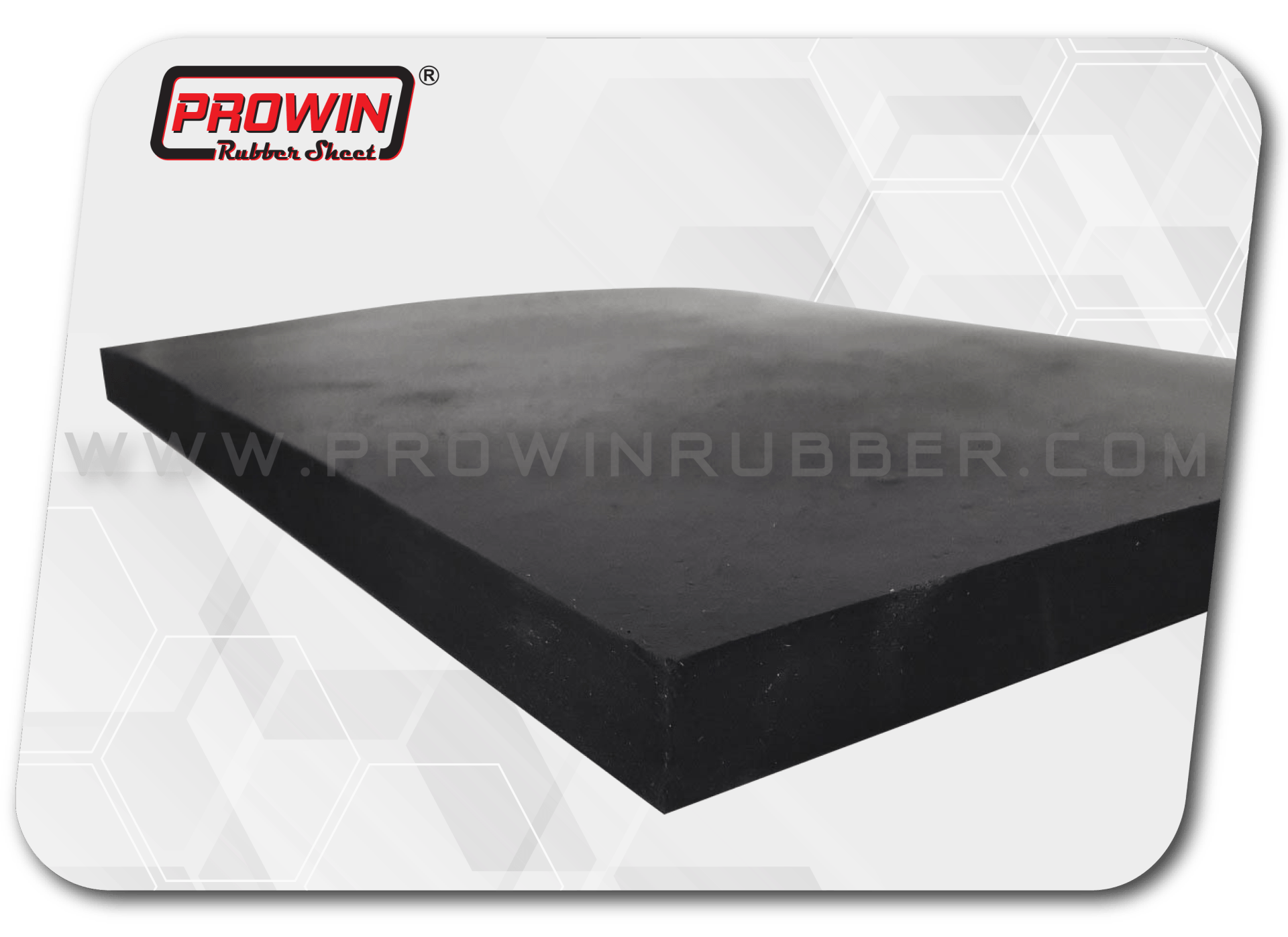

Side view

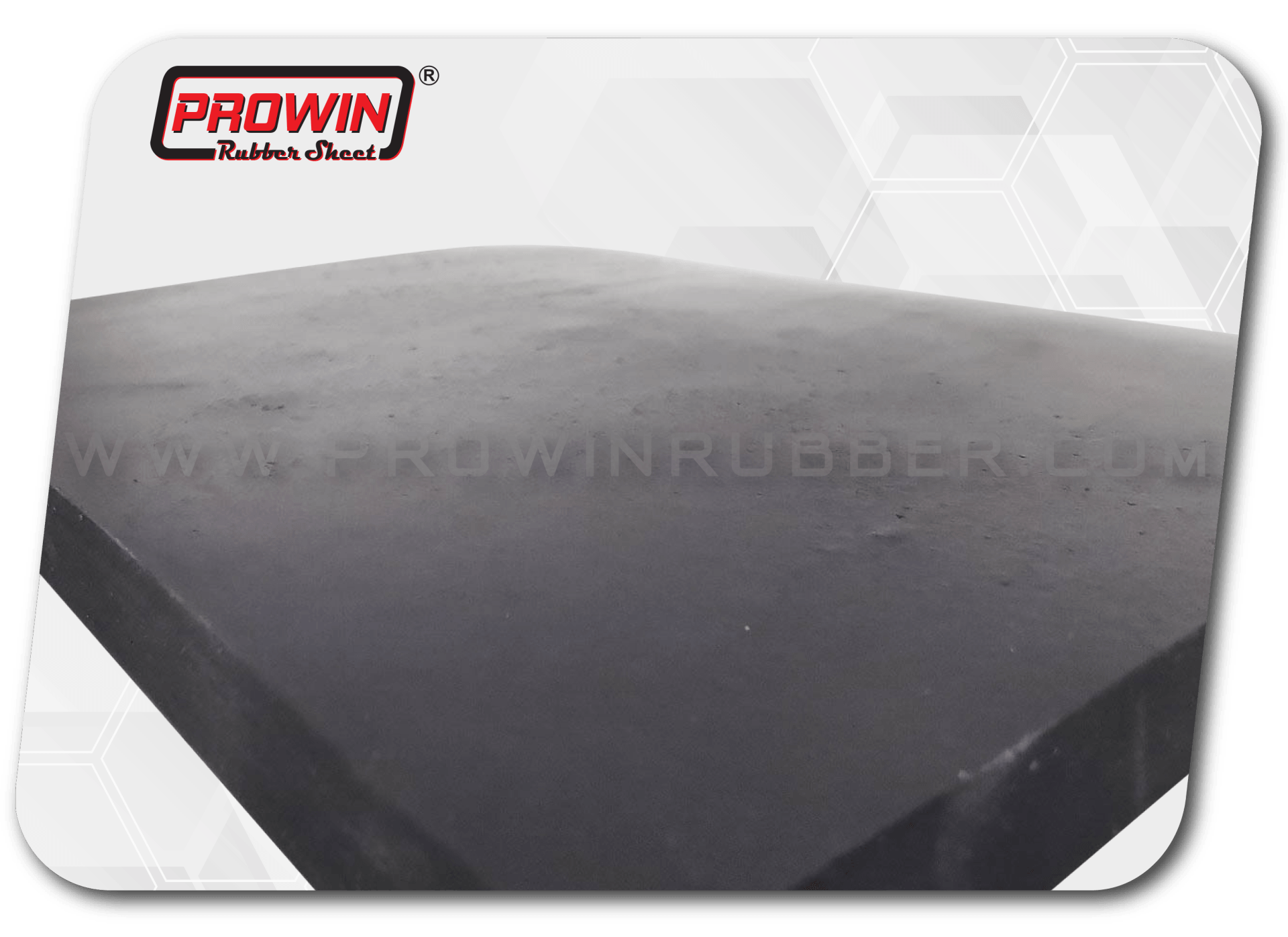

Sample image of rubber surface
Applications
- Use in water resistance applications
- Use in mild mineral oil resistant
- None crucial rubber seals
- None crucial rubber gaskets
Operating temperature
- Low temperature range : -1 °C to -20 °C
- Continuous low temperature : -20 °C
- High temperature range : 50 °C to 80 °C
- Continuous high temperature : 80 °C
Related products (Commercial Grade, rubber sheet, NBR)
NR / SBR Rubber Sheet (SG170H65B)
Hardness range: 65 +/- 5 Shore A
NR / SBR Rubber Sheet (SGNR150H65B)
Hardness range: 65 +/- 5 Shore A

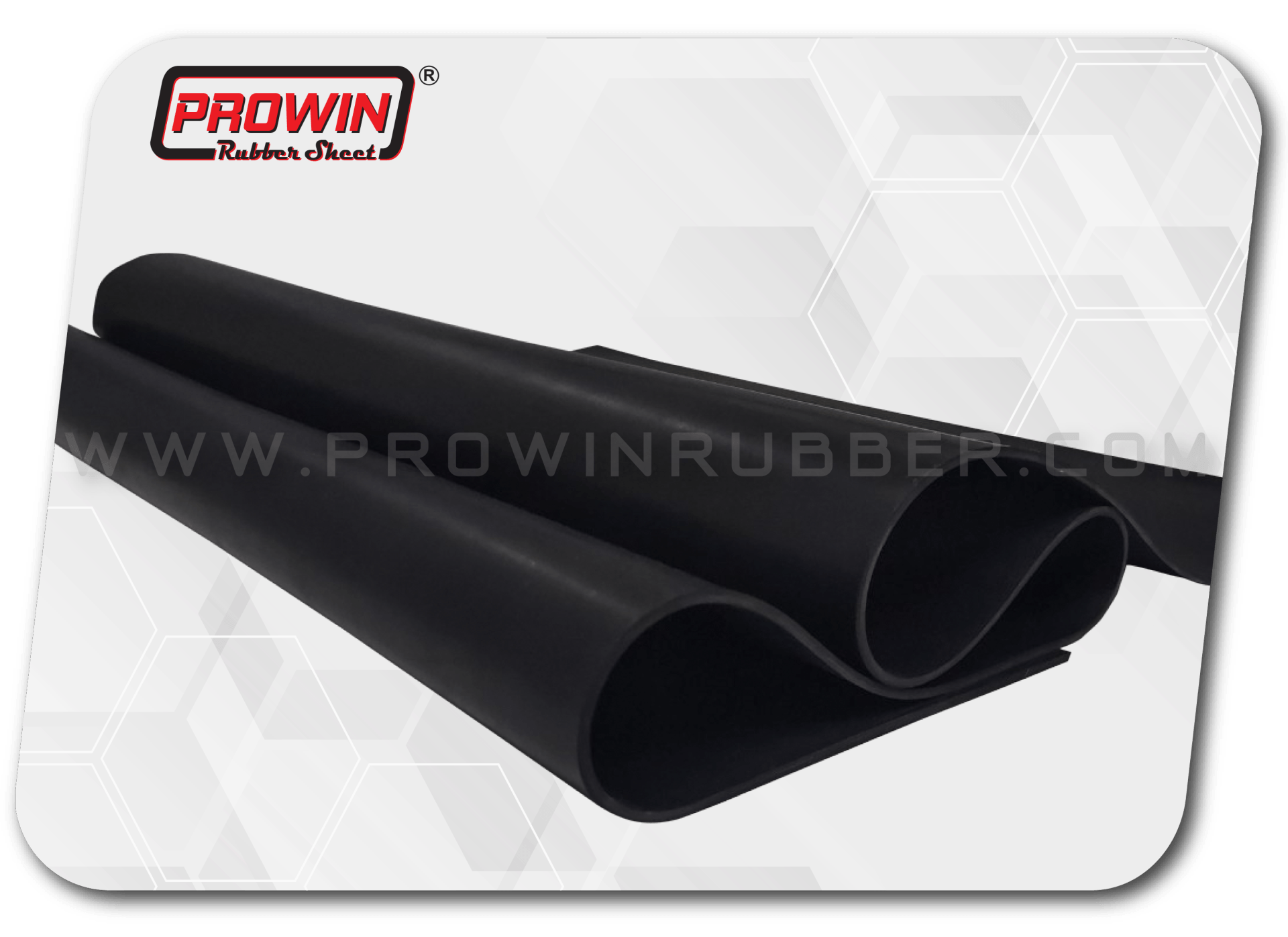

EPDM / SBR Rubber Sheet (SGEP149H65B)
Hardness range: 65 +/- 5 Shore A

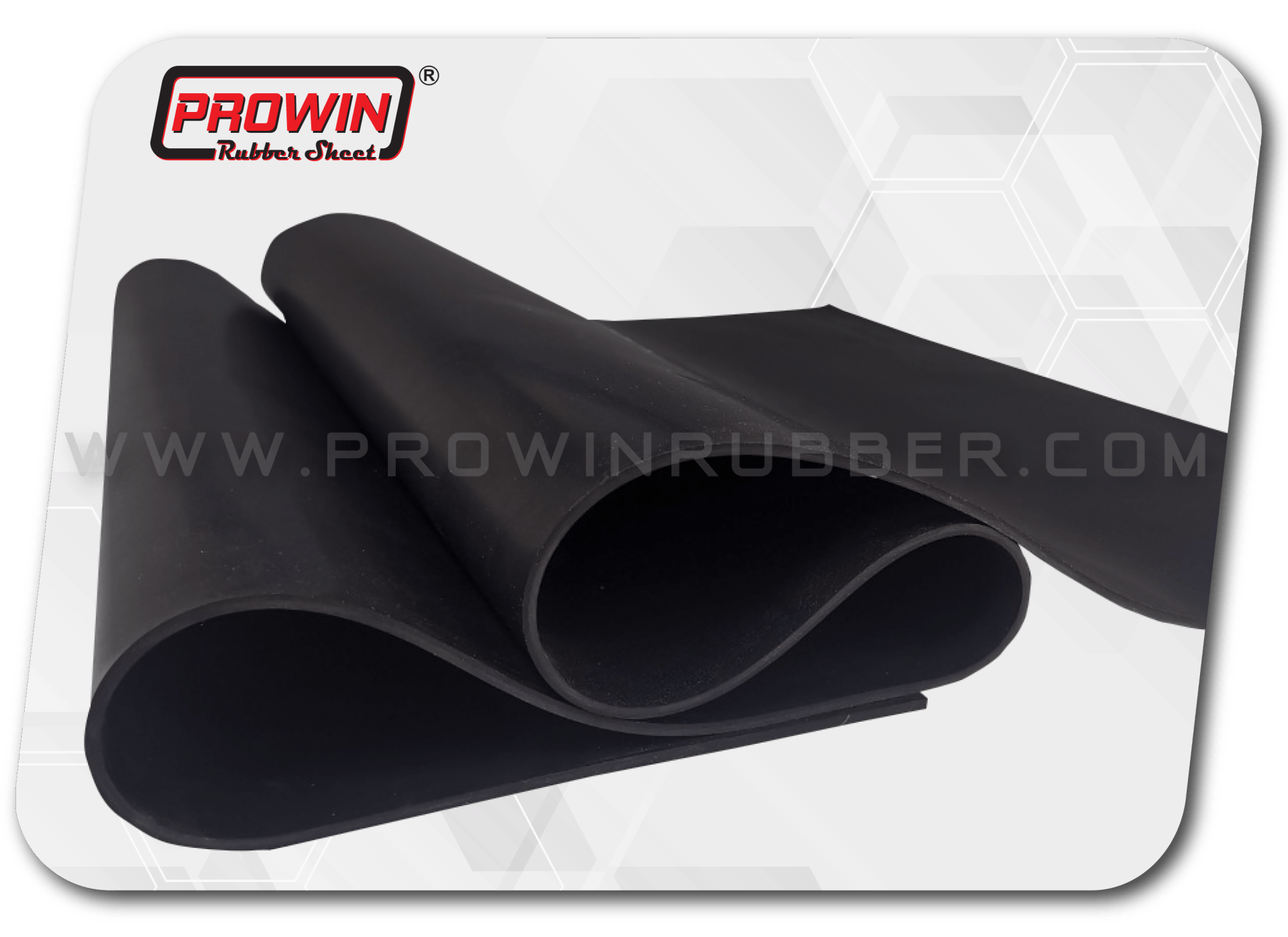

CR / SBR Rubber Sheet (SGCR151H65B)
