Superior Grade: NR Rubber Sheet (DNR105H60B)

PROWIN Rubber Sheet

- RUBBER SHEET YOU CAN TRUST -

Natural rubber (NR) sheet

Product Name : Natural Rubber Sheet

Product Code : DNR105H60B

Product Grade : Superior Grade

Polymer : NR

Color : Black

Size : 1 mm to 25 mm

Width : 1 meter, 1.2 meter, 1.4 meter, 1.5 meter

Status: In Stock

Mechanical and physical properties

Density (g/cm3) : 1.05

Tensile strength (MPa) : 18

Elongation at break (%) : 600

Hardness : 60 +/- 5 Shore A Tearing resistance (N/mm) : 45 Compression recovery (72 hours at 70 °C) : 40%

Abrasion resistance index (mm3) : 150

PROWIN superior natural(NR) rubber sheet - DNR105H60B

Superior natural rubber sheet (NR) is made using 100% raw natural rubber. With no trace of recycled/reclaimed material. Prowin superior grade rubber sheet is environmental friendly, has a better tensile strength, higher elongation, better resistance to chemical, oil, higher abrasion resistance, and weather resistance. With higher grade of raw natural rubber, superior NR rubber sheet can better withstand scratches, bumps, abrasion and impact. Widely used in industries like sand blast, cement silo rubber chute, chemical tank rubber lining, mining and quarries.

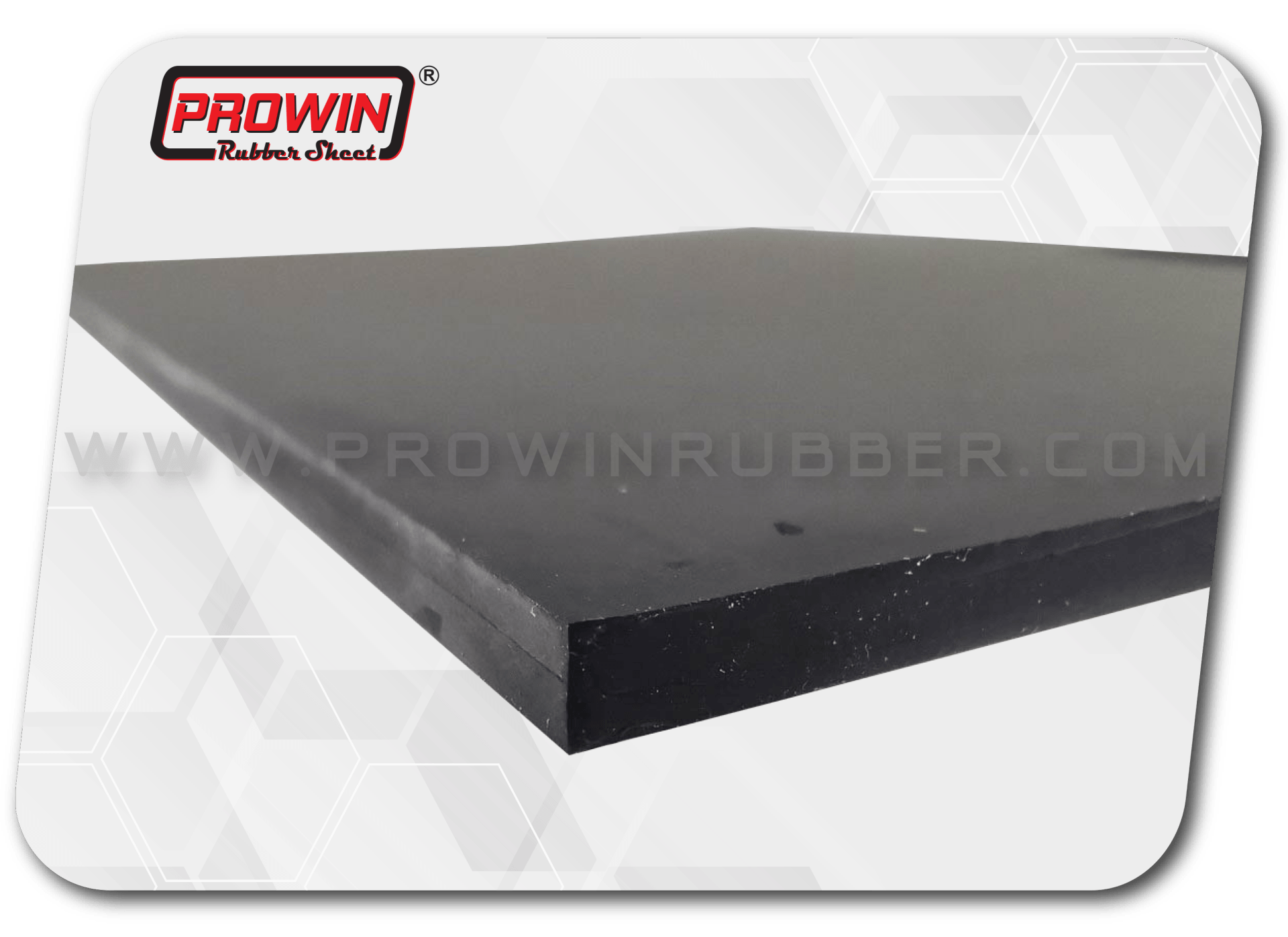

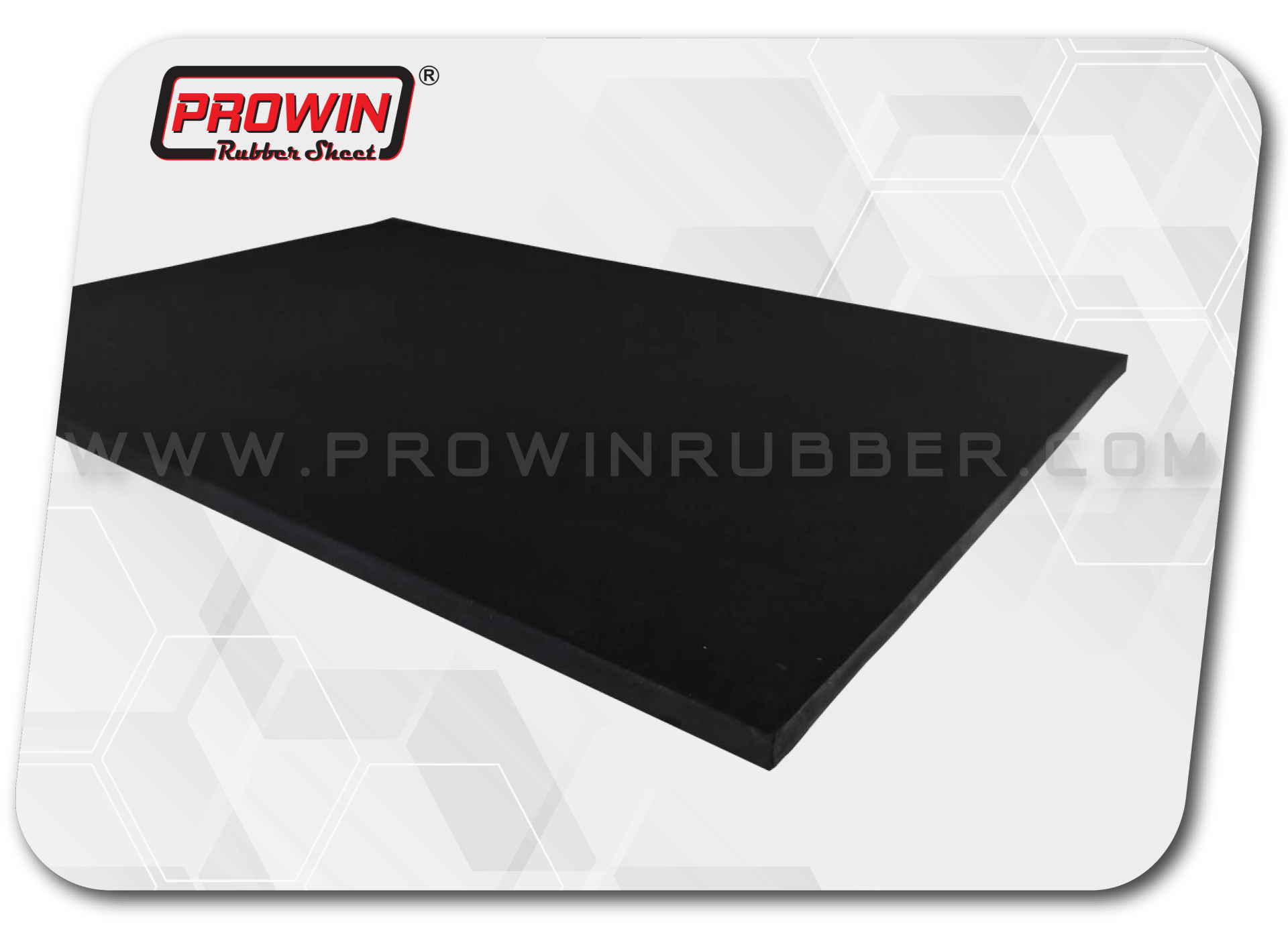

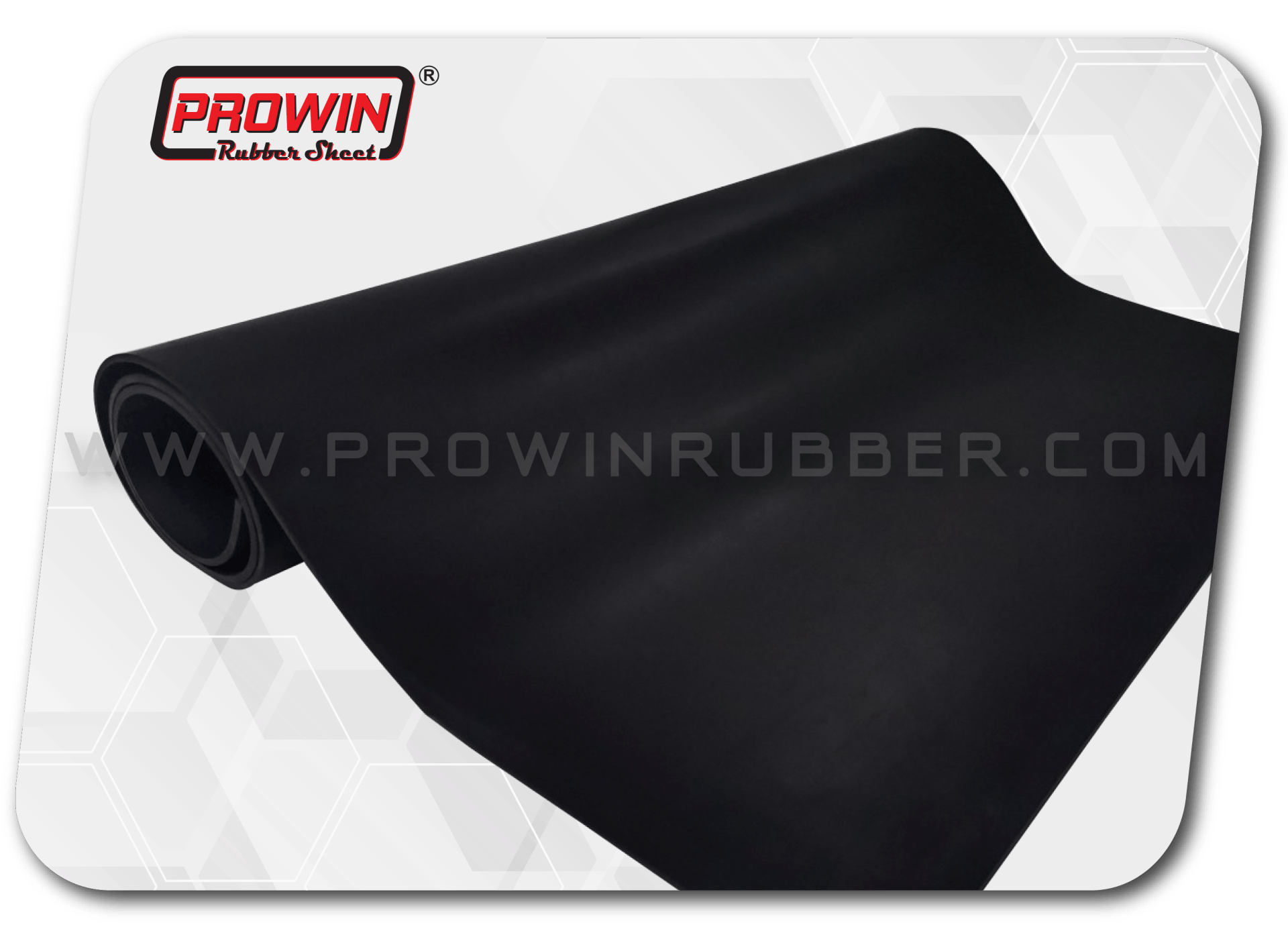

Rubber sheet sample image

Side view

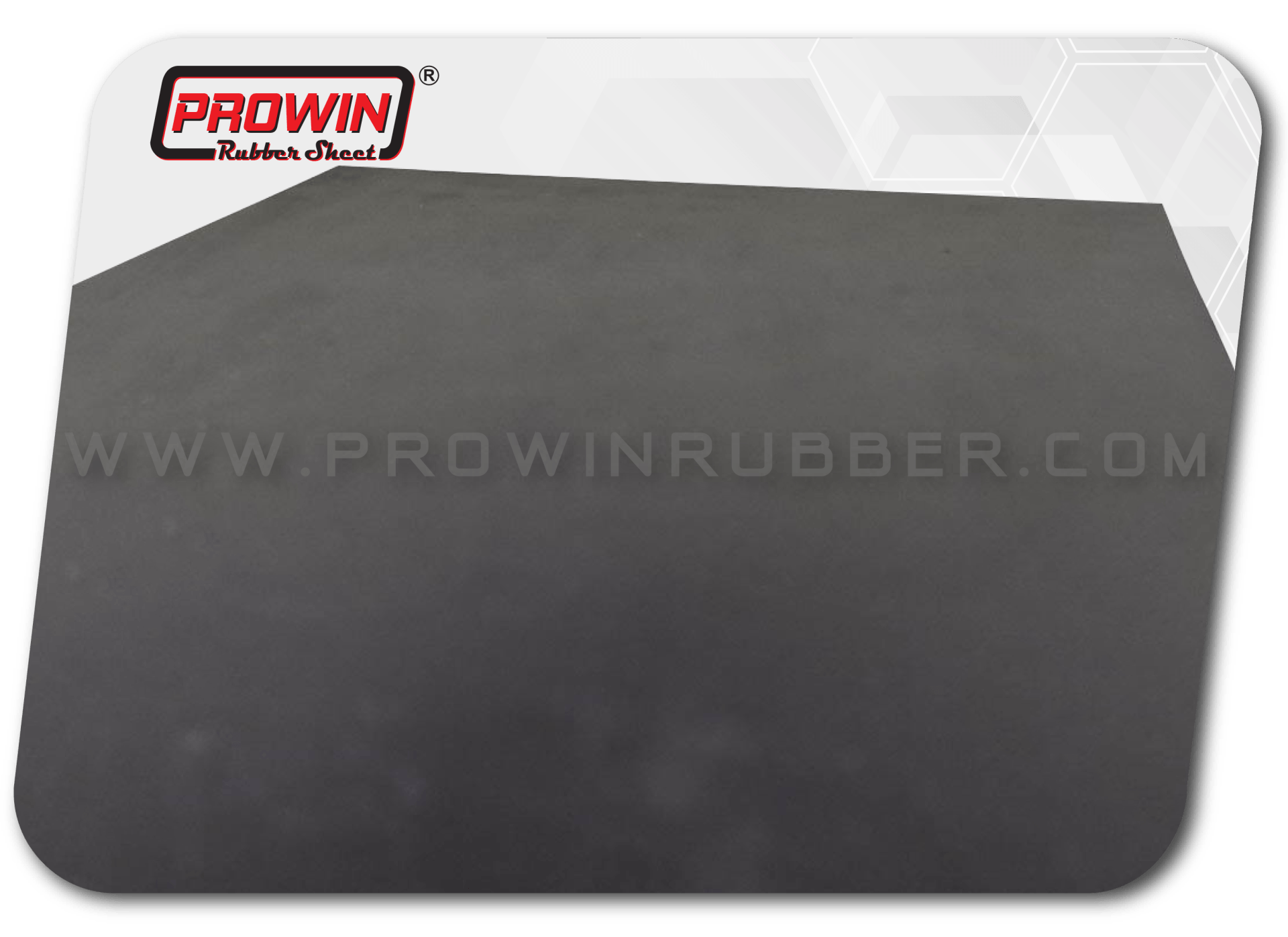

Sample image of rubber surface

Good resistance to scratches, bumps, friction, excellent impact resistance, cutting and tearing, excellent tensile strength, high flexibility

Rubber lining applications, slurry handling, coating tubes, coating pumps Chute valve coating, production of coated belts Hydrocyclones coated with a skirt board covered with Pulley

Operating temperature :

- Low temperature range : -1 °C to -20 °C

- Continuous low temperature : -20 °C

- High temperature range : 60 °C to 90 °C

- Continuous high temperature : 90 °C

Performance

Flammability resistance : 1

Dry and wet abrasion : 6

Gas permeability : 3

Ozone resistance : 1

Oxidation resistance : 4

Weather resistance : 1
