Superior Grade: FKM-Viton Rubber Sheet (DFKM1957H75B)

PROWIN Rubber Sheet

- RUBBER SHEET YOU CAN TRUST -

Superior Grade: FKM-Viton Rubber Sheet

Product Name : FKM-Viton Rubber Sheet

Product Code : DFKM1957H75B

Product Grade : Superior Grade

Polymer : Fluoropolymer

Color : Black

Size : 1 mm to 25 mm

Width : 1 meter, 1.2 meter

Status : In Stock

Mechanical and physical properties

Density (g/cm3) : 1.95

Tensile strength (MPa) : 7

Elongation at break (%) : 250

Hardness : 75 +/- 5 Shore A

Tear resistance (N / mm) : 18

Compressive recovery (72 hours at 70 °C) : 45%

PROWIN superior Flouropolymer elastomer(FKM) - DFKM1957H75B

Superior FKM rubber sheet is high quality rubber sheet can resist a wide range of temperature from -30 up to 260 celsuis, resistant to agressive chemical include chlorine solvent, hydrochloric, hydrocarbon, ketones, organic acids etc. FKM is excellent against various oil include fuel, aromatic petroleum oil, animal oil, and transformer fluids.

FKM is widely use in aircraft and automotive industry especially in heat related parts, aggressive chemical tank rubber lining, salt sea water corrosive resistant.

Rubber sheet sample image

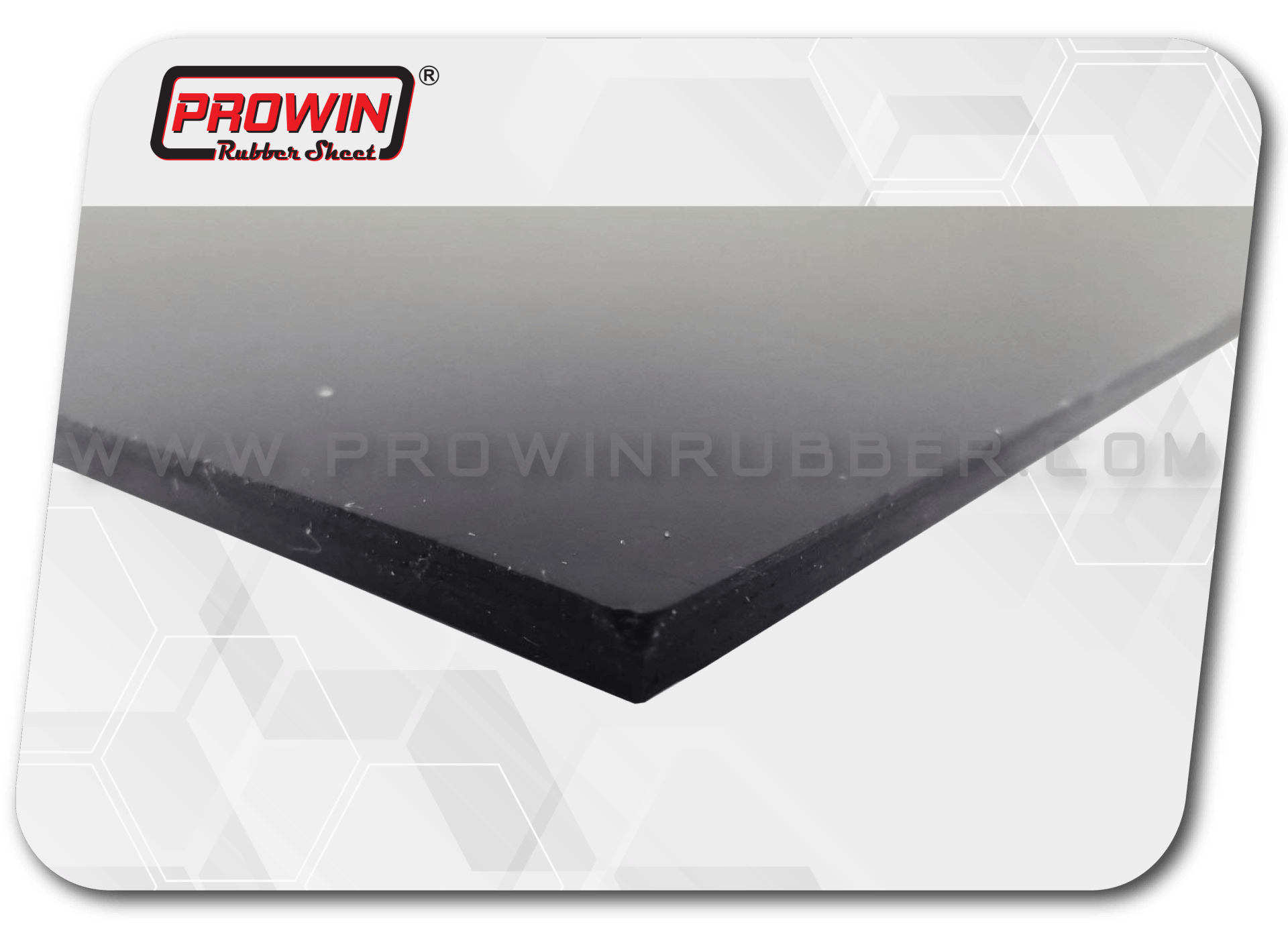

Side view

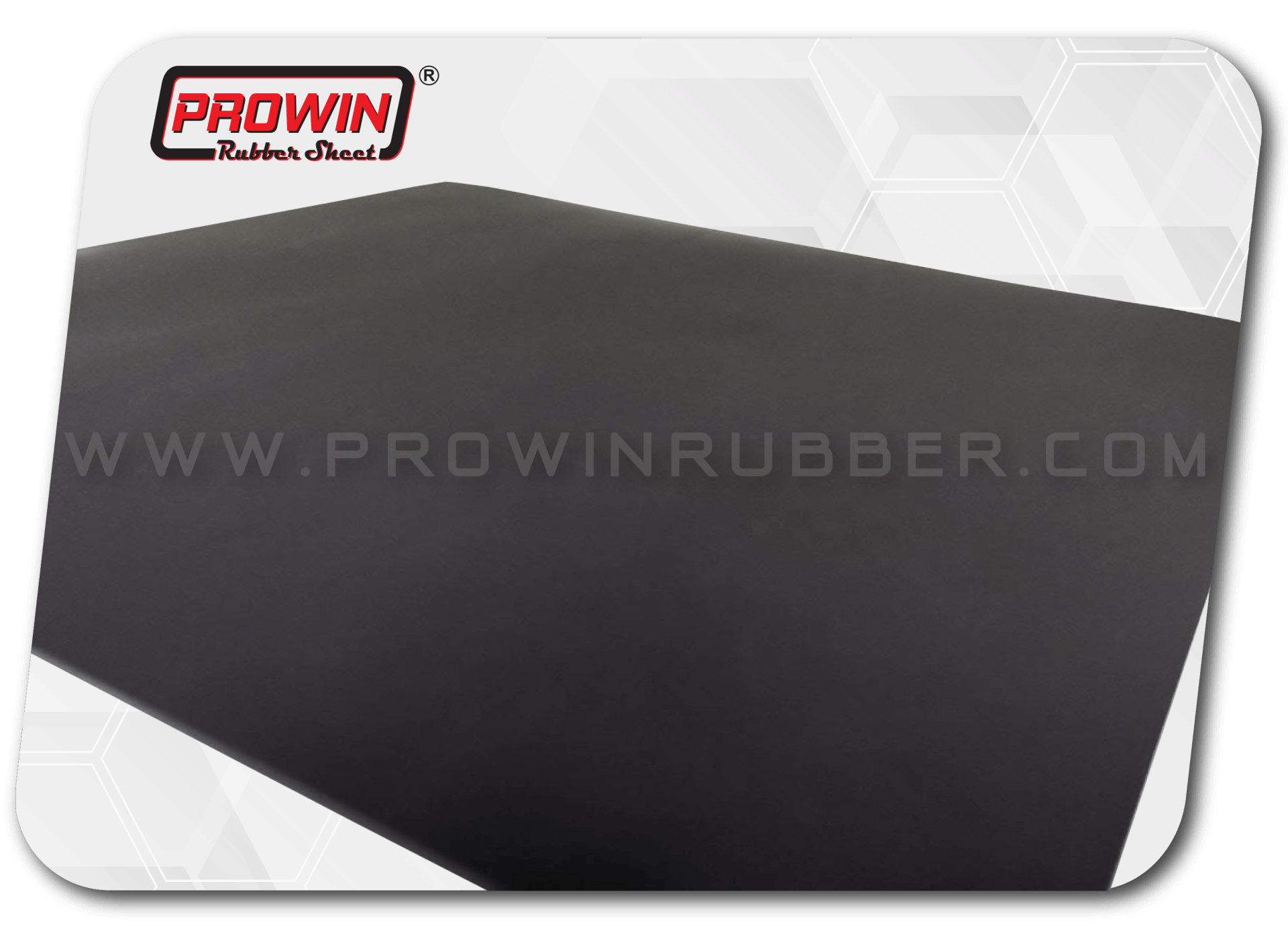

Sample image of rubber surface

Excellent aggressive chemical resistance, excellent heat resistance, excellent ozone, UV and weather resistance, excellent pressure resistance, permeability of liquids.

Applications :

Automotive industry, chemical industry, aircraft and automotive, liquid energy systems, railway energy systems, jet fuel and transformer fluids resistanace.

Operating temperature :

- Low temperature range : -1 °C to -30 °C

- Continuous low temperature : -30 °C

- High temperature range : 180 °C to 260 °C

- Continuous high temperature : 260 °C

Performance

Flammability resistance : 6

Gas permeability : 6

Ozone resistance : 6

Oxidation resistance : 6

Weather resistance : 6

Water resistance : 6
