Download Premium Grade: Peroxide Cured EPDM Rubber Sheet (DPEP110H60B)

PROWIN Rubber Sheet

- RUBBER SHEET YOU CAN TRUST -

Peroxide Cured EPDM Rubber Sheet

Product Name : Peroxide Cured EPDM Rubber SheetProduct Code : DPEP110H60BProduct Grade : Premium Grade แผ่นยางเกรดพรีเมี่ยม
Polymer : EPDMColor : Black
Status : Made to Order

Mechanical and physical properties Density (g / cm3): 1.10 Tensile strength (MPa): 15 Elongation at tear point (range%): 400% Hardness: 60 +/- 5 Shore A Tear resistance (N / mm): 14 compressive recovery (72 hours tested at 70 ° C heat): 20%

Download Specfication

Download msds

Download RoHS Report

Download Test Report

Download Chemical Test Report

PROWIN Rubber Sheet: Peroxide Cured EPDM (DPEP110H60B). Peroxide cured EPDM (Peroxide cured EPDM rubber sheet) is a rubber sheet that is resistant to weathering in various forms. Heat resistant Ozone resistant And resistant to steam The characteristics of the Peroxide cured EPDM rubber sheet are similar to the Premium EPDM rubber sheets, but with different parts for increased temperature resistance. And recovery from compression. Peroxide cured EPDM rubber sheet is a rubber sheet that is safe to use with drinking water. Can be exposed to drinking water for a long time and does not deteriorate when submerged under water Making this rubber suitable for making gaskets. Peroxide cured EPDM rubber sheet is a rubber sheet that is suitable for use with external weather conditions. It can be used as a gasket in a dam or water tank. PROWIN Rubber Sheet Peroxide cured EPDM (DEP110H60B) Premium Grade rubber is a premium grade of rubber sheet that uses genuine pure rubber and raw material ingredients. High quality in production Makes the use of this premium grade rubber very high quality

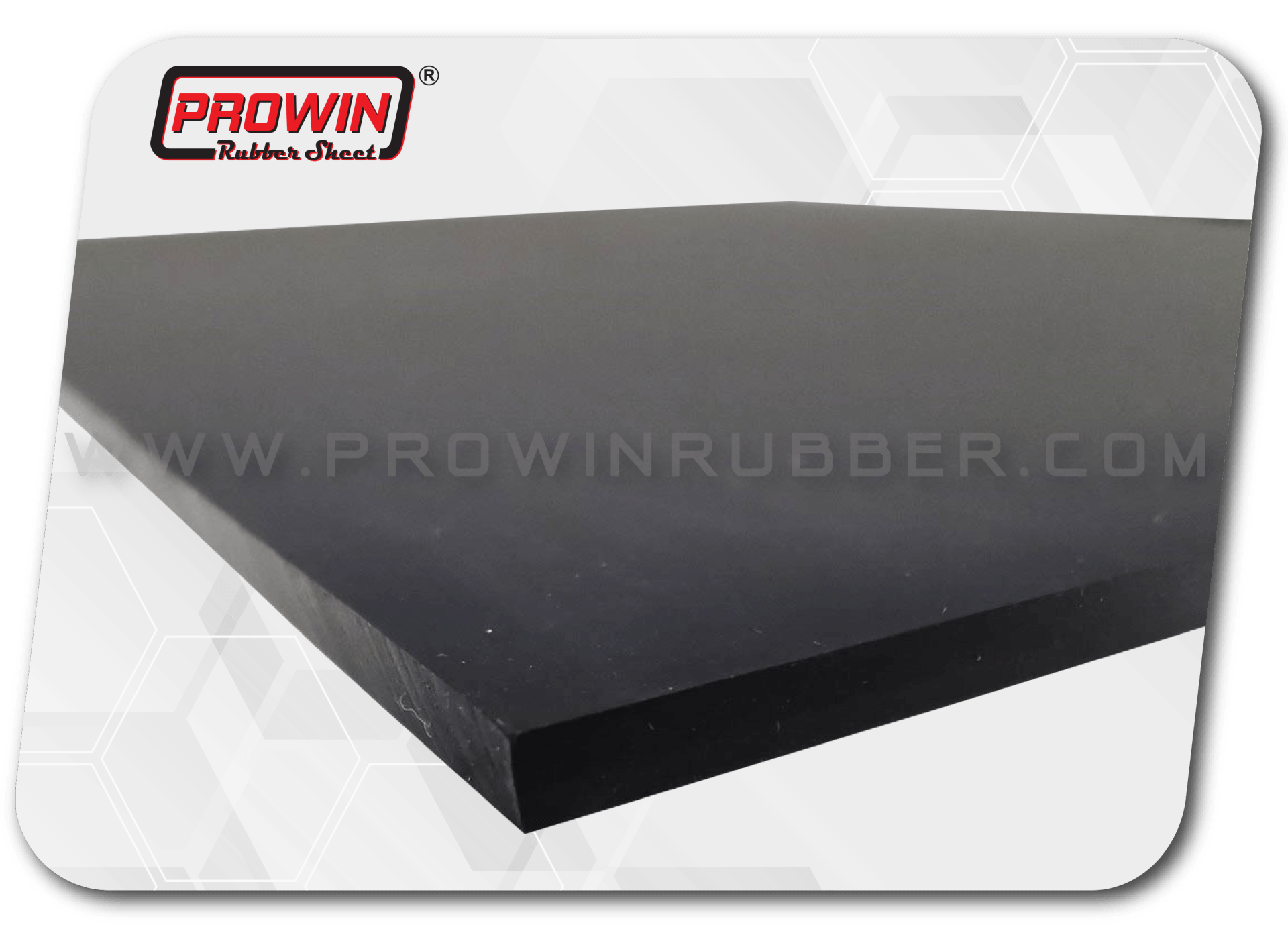

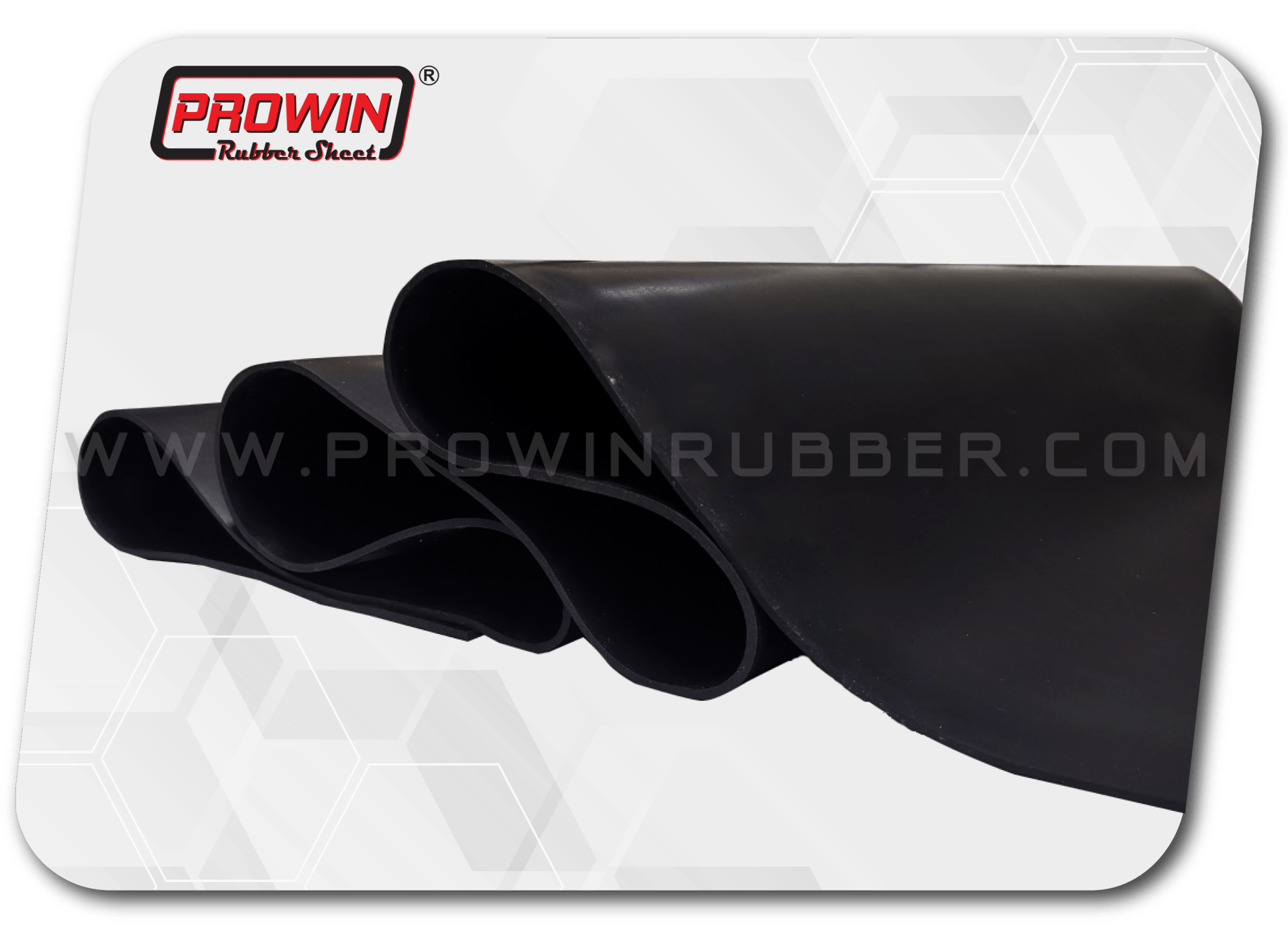

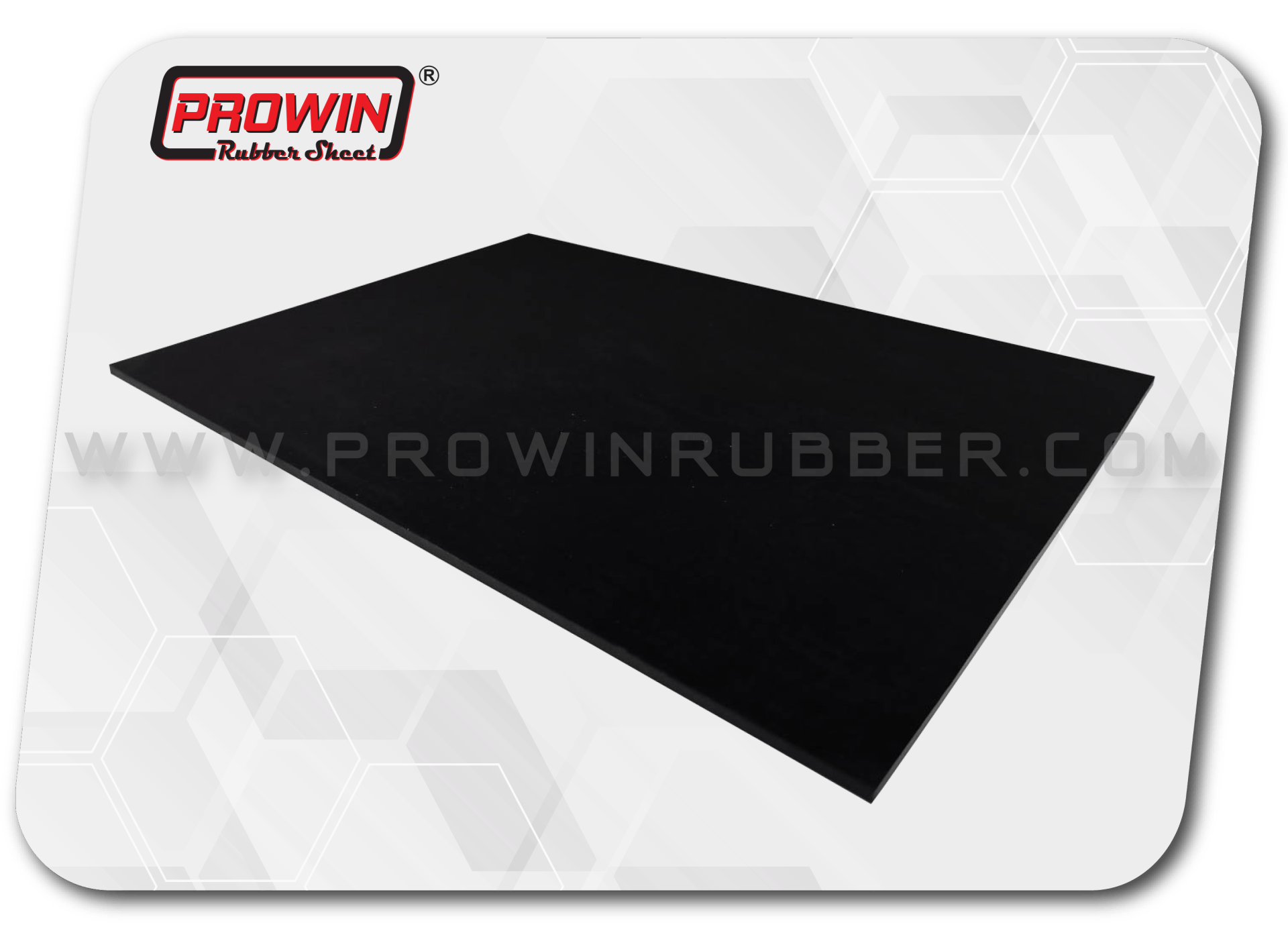

Rubber sheet sample image

Preview of the rim

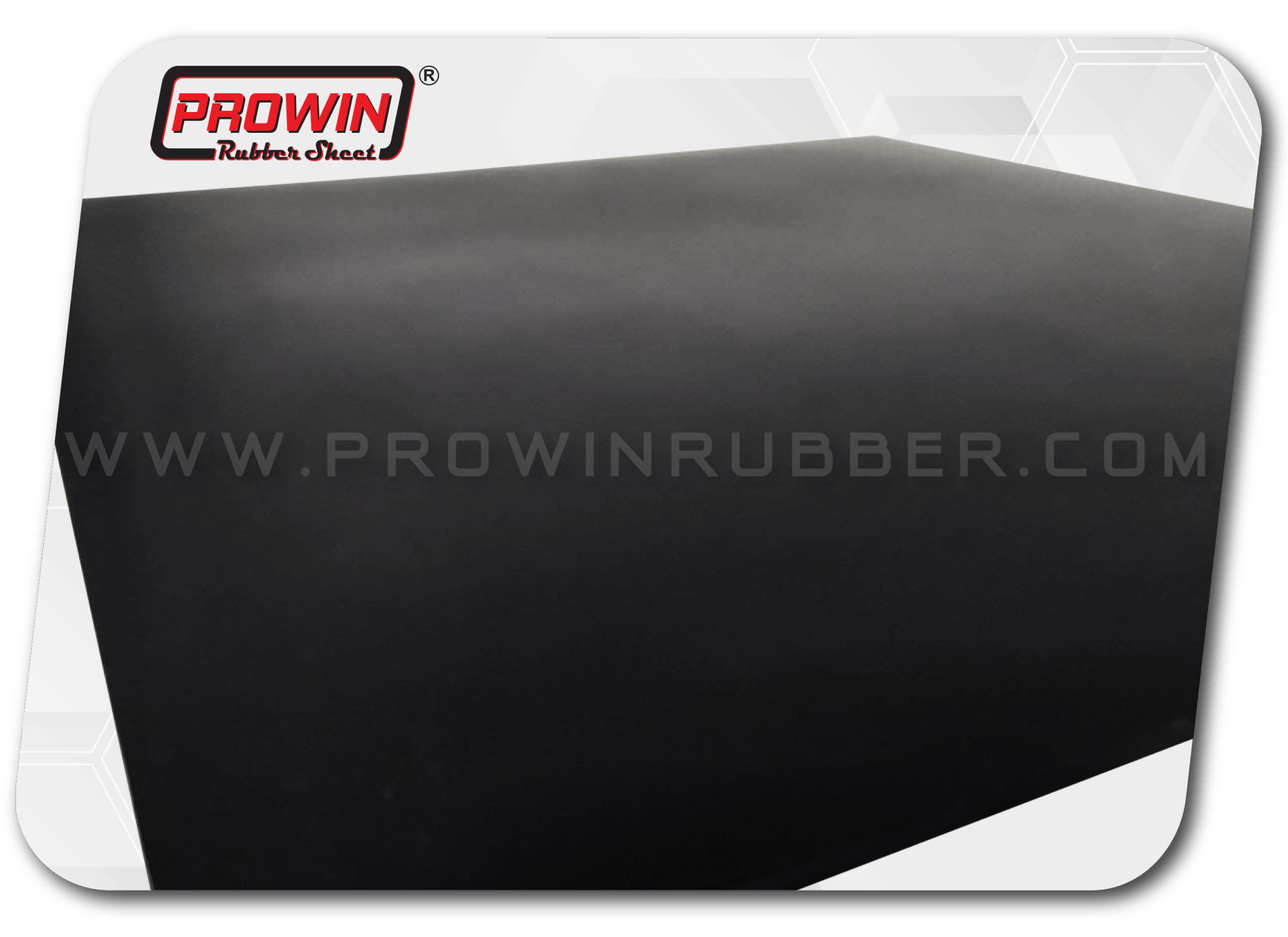

Sample image of rubber surface contact

Recovery properties with very good compression, working temperature up to 150 degrees Celsius, suitable for use with water Or safe drinking water for food

Automobile industry, chemical industry, aviation industry, liquid energy, drinking water industry, automotive power transmission, safety management, fuel systems, electrical appliances safe for food

Features Operating Temperature Range Operating Low Temperature Range: -1 ° C to -30 ° C Continuous Low Temperature Operating Range (Fixed): -30 ° C Operating at High Temperature Range: 1130 ° C to 150 ° C. Continuous high (constant) operating temperature range: 150 ° C

Performance Flammability resistance: 2 Gas permeability: 4 Ozone resistance: 6 Oxidation resistance: 6 Weather resistance: 6 Water resistance: 6Score rate: 6 = Excellent, 5 = Good to Excellent, 4 = Good, 3 = Fair to Good, 2 = Fair, 1 = Poor to Fair, 0 = Poor

Heat resistance (100 ° C x 70 hours) ASTM D573 Hardness range: +3 Shore A Tensile strength range: +/- 30% Elongation at tearing point: -50%

Download Specfication

Download msds

Download RoHS Report
